Relationships

Relationships in Hudu allow you to connect relevant modules, giving the ability to map out your documentation and create an actionable breadcrumb; in turn, allowing technicians to:

  • Navigate vast amounts of documentation in seconds;
  • Link relevant step-by-step processes and KB articles to provide procedures, assist with support, and provide real-time status reports to clients while recording any actions performed.
  • Create or connect existing passwords, tied directly to their asset enabling the ability to copy usernames, passwords, and TOTP codes directly from the asset page.

    Relationships can be created for data of the same type (like linking an asset to another asset) OR linking different types of data together (like linking login credentials for an application, directly to the application!)



Guides

Access to related items and functions may vary depending on your Hudu user role as well as the security permissions placed upon you/your security group by the admin and super admin accounts at your organization.

   To see/utilize related items, you'll need at least ( 2 ) pieces of information stored within a client space (this could be two passwords, KB articles, assets, processes, or a mix of multiple).



Related Items

The related items tab can be found on the right-hand side of the screen when you've drilled down inside of a single item within one of your spaces (i.e. inside a KB article, individual password, etc.). It acts as the tool to build your web of interconnected documentation and permits navigation across your clients' documentation.

Although functionally identical to our standard related items; we also have separate sections for assets for both processes and passwords. These allow you to link assets directly to templated processes and/or to relevant passwords with the copy-able username, password, and TOTP code (security permissions required).

Standard Relations
In this section, we'll show you how to utilize the related items section; this section will show up when inside a client's asset, KB article, process, password, website page, and/or client expirations list.
  • Navigate inside a client space >> into an asset layout (we'll use 'Desktops' for our example) >> and into an individual asset (we'll use 'Fred's Desktop').

    In addition to custom assets, the related items tab can also be found inside individual passwords, processes, KB articles, and website pages.

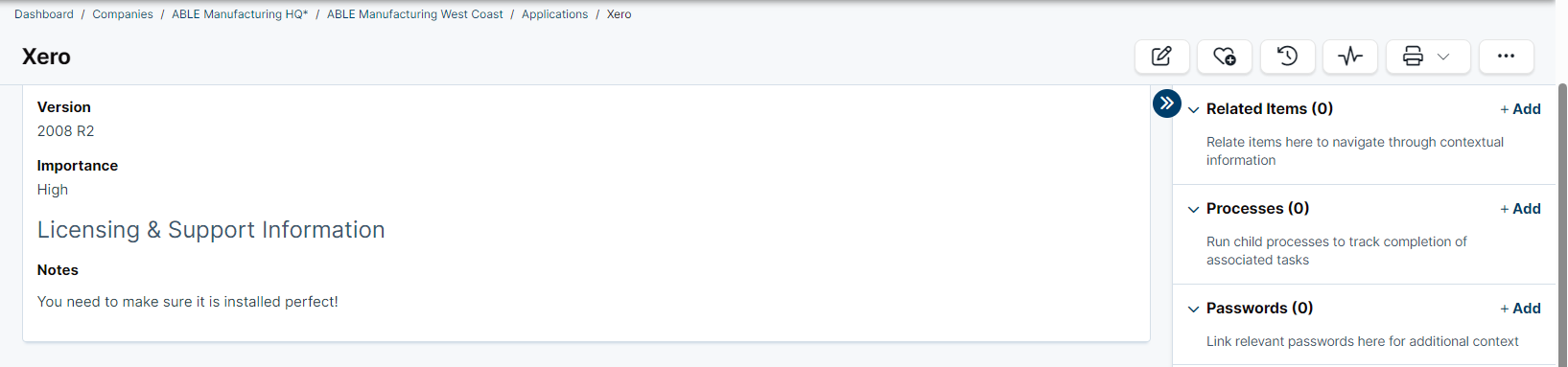

  • On the right-hand side, you'll see a sidebar containing a section called Related Items.
  • From here, click + Add.


  • This will open a module that allows you to:
    • Select the type of information you'd like to relate to (i.e. client, custom asset, article, password, or website)
    • Enter the name of the asset you'd like to relate to (i.e. name of password, name of the website, etc.)
    • Additional abilities:
      • Uncheck the 'Limit to client' if you'd like to relate the item to an asset stored within another client space
      • Include archived, for linking to items stored inside the Museum.
Relate Processes
In this section, we'll show you how to utilize the related processes section; processes can serve as how-to guides, SOPs, or maintain records of procedural actions performed.


    To perform the following actions, the process's ability will need to be enabled in the asset layout that we'll be working with (visit the Editing Asset Layouts).

    Processes will also need to be created and converted to template status (visit Processes for information on creating processes).

  • Navigate inside a client space >> into an asset layout (we'll use 'Desktops' for our example) >> and into an individual asset (we'll use 'Fred's Desktop')
  • On the right-hand sidebar, you'll see a section called Processes (if this ability has been enabled for the current asset layout).
  • From here, click + Add.
  • This will direct you to a window where you can see all of your clients' [the client space you currently reside] processes that have been converted to templates.
  • Select the desired process that you'd like to link; this will create a child process (blank copy of the selected template) ready to be completed for the chosen asset!
Relate Passwords
In this section, we'll show you how to utilize the related passwords section; existing passwords can be related OR new passwords can be created.

Relating items to existing passwords is accomplished via the related items tab; passwords related in this fashion will still show up in the related passwords section.


    Security permissions will follow the permissions placed upon the password, and will be adopted from the parent asset they were created under; further restriction of these passwords is still possible.

  • Navigate inside a client space >> into an asset layout (we'll use 'Desktops') >> and into an individual asset (we'll use 'Fred's Desktop').

    In addition to custom assets, the related items tab can also be found inside individual passwords, processes, KB articles, and website pages.

    • On the right-hand sidebar, you'll see a section called Passwords (if this ability has been enabled for the current asset layout).
    • From here, click + Add.
    • This will direct you to a window where you can add a new password.
    • Click Create or Create and Add Another to save the current password.
    • Back on the asset page, you should now have a direct link to the password, with a copy-able username, password, and TOTP code (if this was set up).



Asset Links

Asset links act as an alternate way of linking assets to other assets stored within Hudu. These are clickable related item links that are stored directly in line with the rest of your documentation. These are stored in your custom card section of an asset.

Asset links are created by first adding an 'Asset Link' field to an asset layout. Before creation, ensure you select which asset layout you'd like to 'pull from' (essentially, which asset layout can the item you'd like to link to be found).


    For additional information on adding fields, visit Asset Layouts.



    Creating or adding the actual connection to another asset is done from within the asset >> 'edit' function.

  • Navigate to client space >> into the asset layout where you've just added the asset link.
    • To create asset link fields, you'll need to have a user role of admin or super-admin.
  • Click into an individual asset >> click the Edit icon in the top right.
  • Find your asset link field and search for the name of the asset you'd like to link.
  • Click Update to save your changes.
    • You should now have a field within your custom card; that links to the asset you've chosen.



FAQ

Why would I use the related items?

Answer: Related items give you the ability to create direct links to relevant information. This means that technicians servicing a particular asset have access (given they have security permissions to do so) to all relevant information from a single window.

Password related to an asset is not showing up on the asset side.

Answer: If a password is related to an asset, but is not showing up within that asset’s detail page:

    • Likely, the specific asset layout in which the asset lives, has its’ “passwords" ability disabled.
    • An admin or super admin would need to click admin >> asset layouts >> and into the specific asset layout in question.
    • From here, click “edit asset layout” in the top right.
    • Look for the “Customize Abilities” header, and ensure that “Include passwords” is checked/enabled.
Process related to an asset is not showing up on the asset side.

Answer: If a process is related to an asset, but is not showing up within that asset’s detail page:

    • Likely, the specific asset layout in which the asset lives, has its’ “processes" ability disabled.
    • An admin or super admin would need to click admin >> asset layouts >> and into the specific asset layout in question.
    • From here, click “edit asset layout” in the top right.
    • Look for the “Customize Abilities” header, and ensure that “Include processes” is checked/enabled.
