Setting Up Microsoft Graph to Send Emails Through Hudu

This guide explains how to set up an Azure App Registration and configure the permissions needed for Hudu to send email through Microsoft Graph.

Prerequisites

• Access to the Azure Portal

• Admin permissions to create app registrations and grant API permissions

• Hudu instance ready for configuration. Must be on version 2.4.0 or later.

Create an App Registration in Azure

• Log in to portal.azure.com

• Open Microsoft Entra ID

• Go to App registrations

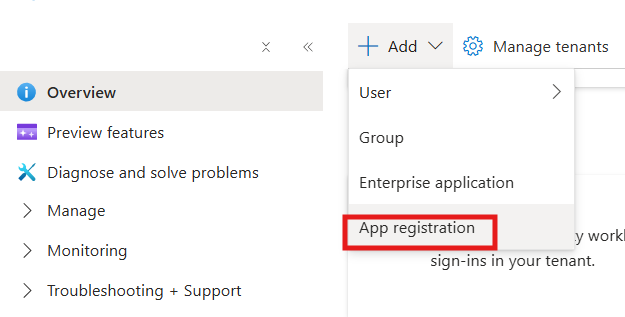

• Select New registration

• Enter a name for the application

• Set Supported account types to Single tenant

• Leave the Redirect URI field empty

• Click Register

Copy Required IDs

• After the app is created:

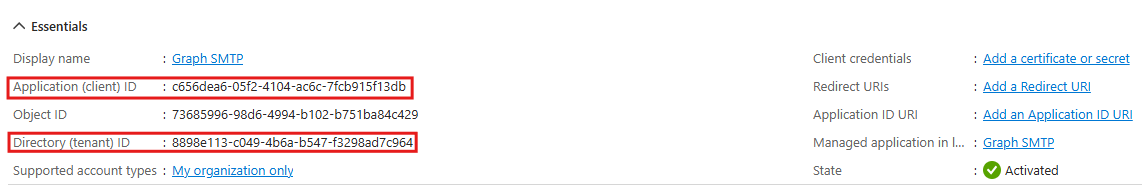

  • copy the Tenant ID and Application (client) ID

• Paste both values into Hudu

Create a Client Secret

• Open Certificates & secrets

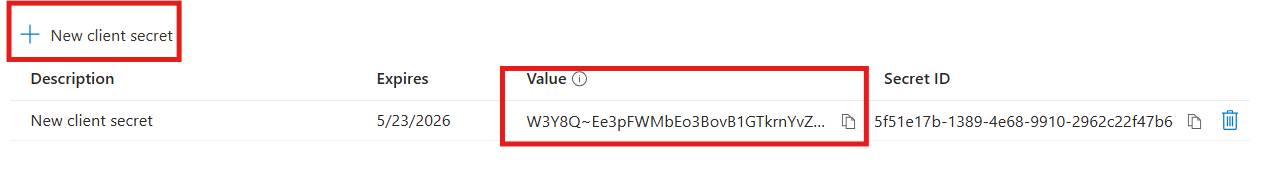

• Select New client secret

• Assign a name and choose an expiration period

• Click Add

• Copy the Value (not the Secret ID)

• Paste the secret value into Hudu

Add Microsoft Graph Permissions

• Go to API permissions

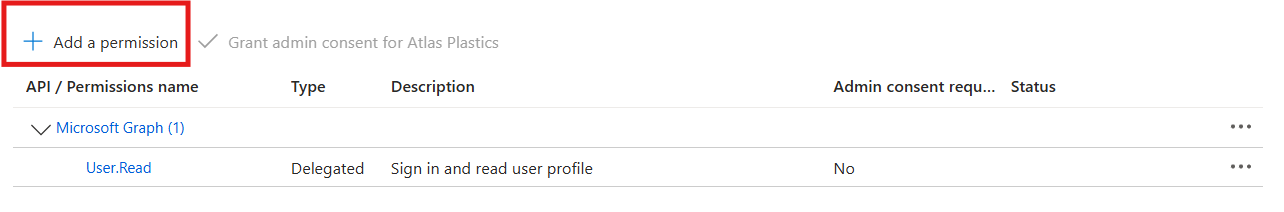

• Choose Add a permission

• Select Microsoft Graph

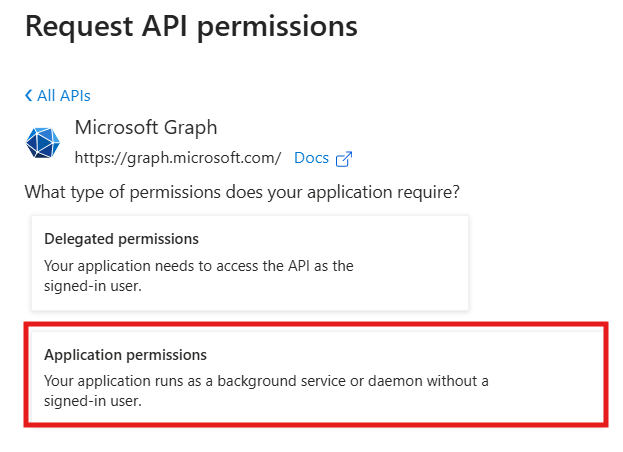

• Choose Application permissions

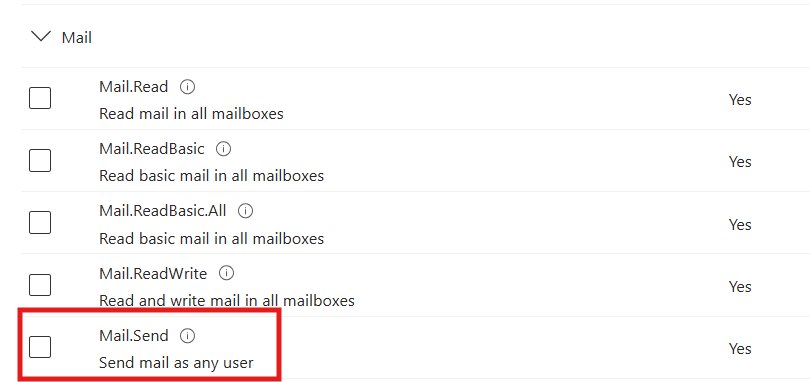

• Add Mail.Send

• Save the changes

Grant Admin Consent

• While still in API permissions, select Grant admin consent for your organization

• Confirm the action

• The status should update to show the consent is granted

In Hudu

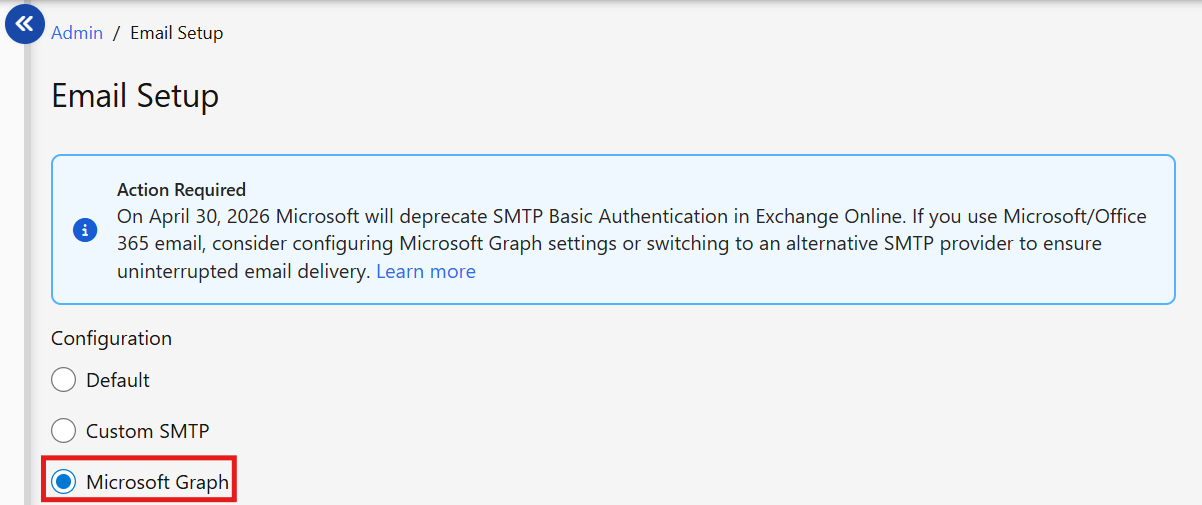

• Navigate to Admin > Email Setup

• Under Configuration, select Microsoft Graph

• Paste Tenant ID, Application (client) ID, and Secret value

• Enter from address

  • This MUST be either a licensed user inside of M365, or

  • A shared mailbox

• Enter Display Name

• Save the Settings

• Test
